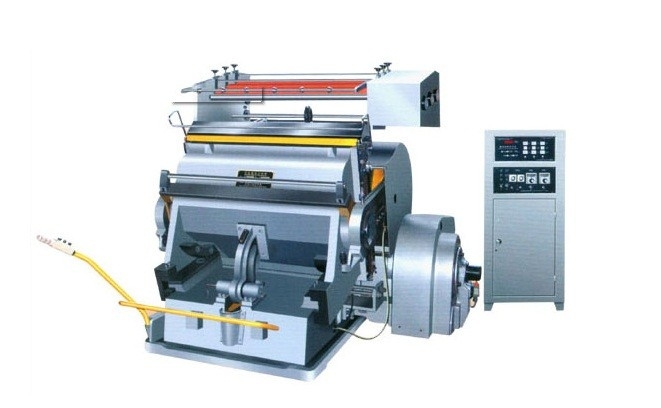

Automatic Electric Hot Foil Stamping Machine 12kw With Micro Processor
Die Cutter Machines
,Die Cutting Machine
Automatic Foil Stamping and Die Cutting Machine
Description:
1. We design TL780 automatic foil stamping and die cutting machines. Their functions include hot stamping, die cutting, convex pressing and creasing. It can also carry out automatic feeding, hot stamping and paper collection, etc.
2. This machine consists of main motor, hot stamping mechanism, auto feeder, and electric equipment. The motor drives the shaft in an up and down motion, and the pressure can be conveniently adjusted to carry out the stamping or die cutting process.
3. Micro processor is used to control the entire machine. The electrical parts of our machine include main feeder/collect control, motor control, foil feeder control, etc.
4. The machine is equipped with an automatic lubrication system.
Specificaitons:
|
Model |
TL780 |
|
Max. sheet size(mm) |
780×560 |
|
Min. sheet size(mm) |
280×220 |
|
Max. feeding pile height (mm) |
800 |
|
Max. collect pile height (mm) |
160 |
|
Max. working pressure(N) |
110×104 |
|
Power rating(KW) |
12 |
|
Air pump displacement(m3/h) |
40 |
|
Paper range(g/m2) |
100 -2000 |
|
Max. mechanical speed (s/h) |
2500s/h paper>150g/m2 1500s/h paper<150g/m2 |
|
Machine weight(kg) |
5500 |
|
Machine noise(db) |
<81 |
|
Heating capacity(KW) |
8 |
|
Overall machine dimensions(mm) |
3700×1910×2200 |
-
