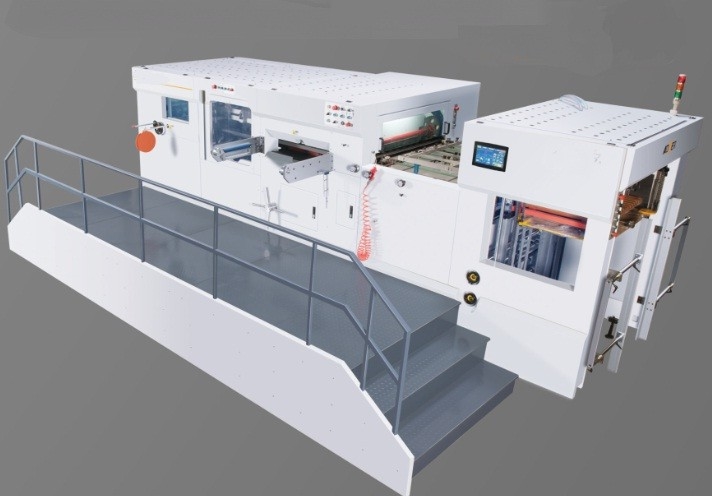

Strong Suction Head Automatic Packing Machine With Stripping Function
Hot Foil Stamping Machine
,Die Cutting Machine
Semi-automatic Package Machinery Die Cutting Machine With Stripping Function
Introduction
Compared to standard series, this machine has the extra function which is stripping waste. It can significantly reduce the labour cost during the producing. This machine is made by professional processing with scientific structure. It is very easy ro operate. Compared to manual die cutting machine, the safety of this machine is much higher. It can be widely used in die cutting area whcih is suitable for paper board, corrugated board, pp, pvc and so on. Due to we focus on the quality of prodcut, the working life of this machine is very long.
Advantages
The device uses European technological strong suction head, 4 suction 5 feeding, with adjustable suction duct and air absorption device on both sides to ensure the feeding smoothly. Further, according to paper style and different bending parameters, it can be adjusted to get wild range of application.
Stripping Device
High Precision Worm and Worm Wheel Device
Air lock device with middle line and Overload protection device
High sensitive air clutch and Die board turnover device
Main Parameters
| Model | Pro-ADCM-S1080 | Pro-ADCM-S1300 | Pro-ADCM-S1500 | Pro-ADCM-S1650 |
| max. paper size | 1080x780mm | 1320x980mm | 1500x1100mm | 1670x1210mm |
| min. papaer size | 450x380mm | 550x480mm | 550x480mm | 520x460mm |
| max. cutting size | 1075x770mm | 1300x950mm | 1470x1070mm | 1650x1200mm |
| cutting pressure | 200 | 250 | 250 | 250 |
| total power | 16.7kw | 17.8kw | 17.8kw | 22kw |
| machine weight | 15 tons | 16 tons | 19 tons | 22 tons |
-
