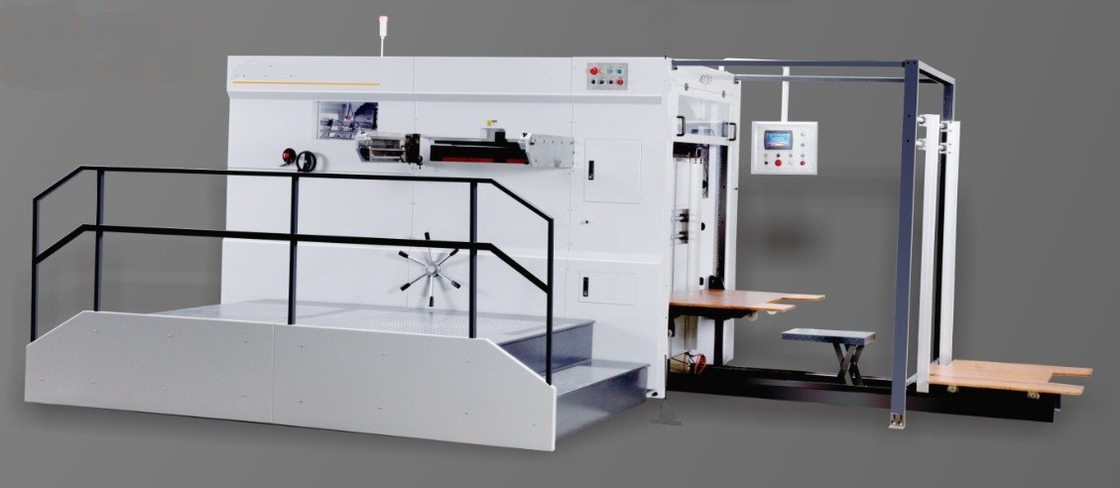

The Introduction of Semi Automatic Die Cutting Series
After several years practise, we develop and produce this wonderful machine. Compared to other machines, it has a lot of competitive advantages. This machine has a lot of features inculing scientific structure, reasonable design, simple operation, smooth running and wide field of application. It is suitable for thick paper board, grey board, corrugated board and carton.This machine can be in stead of manual die cutting machine to improve safety and work efficiency. With the increase of labor cost, this machine wii be a good choice for customer to increase not only the quality of product but also the profits of factory.
Main Specification
| Model | Pro-SADCM-1080 | Pro-SADCM-1300 | Pro-SADCM-1500 | Pro-SADCM-1650 |
| Max.Paper Size | 1080x780 | 1320x980 | 1500x1100 | 1680x1250 |
| Min. Paper Size | 400x380 | 550x480 | 550x480 | 650x550 |
| Max. Cutting Size | 1070770 | 1300x950 | 1470x1070 | 1650x1220 |
| Cutting Pressure | 200 | 250 | 250 | 300 |
| Thickness of Corrugated Board | 1-7 | 1-8 | 1-8 | 1-9 |
| Cutting Precision | 0.2mm | 0.25mm | 0.30mm | 0.40mm |
| Height of Peper Pile | 1140 | 1260 | 1300 | 1320 |
| Height of Peper Delivery Pile | 1080 | 1200 | 1250 | 1260 |
| Height of Peper Feeding Pile | 1298 | 1400 | 1500 | 1580 |
| The Total Power | 16.75Kw | 17.2Kw | 18Kw | 20.5Kw |
Further Feature
1. The Pre-stack Device (optional part) can increase work efficieny and save time to get more profits.

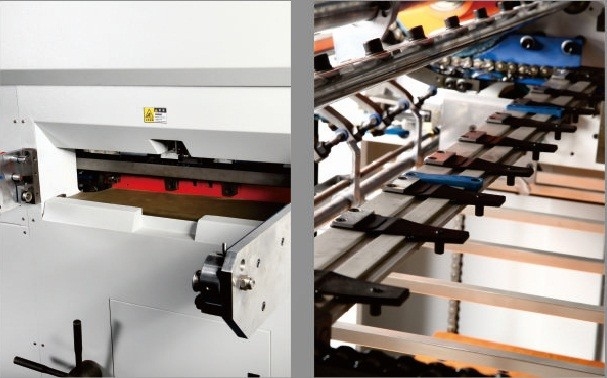

2. This machine use mechanical brush device to press paper. At the same time, it is equiped with bidirectional blowing device to send paper smoothly. Set the function of speed reduction or stopping machine after the paper is full.
3. The casting is made by high strength resin sand process to improve the precision. This machine uses high precision worm and worm wheel to ensure less deformation in high speed.
4. This machine uses imported electrical parts and bearing. It uses oil circulation system and PLC automatic control oil pump system to keep machine running smoothly under high speed which will increase the working life of machine.
