Thông tin chi tiết sản phẩm:
|
| Processing Area: | 100x100mm or 150x150mm | Laser Module Lifetime: | 1.064um |
|---|---|---|---|
| Repetition Frequency: | 20-80KHz | Quality of Laser Bean: | M2<1.5 |
| Maximum Line Marking Speed: | 12000mm/s | Vibrational Mirror: | High-performance scanning vibrational mirror |
| Marking Line Depth: | <0.2mm | Smallest Marking Character: | 0.15mm |
| Minimum Marking Line Width: | 20um | Electricity Needs: | 220V 50Hz 12A |
| Total Power: | <1KW | Cooling Method: | High precision constant temperature/closed cycle cooling |
| Graphic File Format Supported: | PLT,AI,CDR,DWG,DXF,BMP,JPEG | ||
| Điểm nổi bật: | Laser Cutter Machine,Co2 Laser Marking Machine |
||
Applicable Industry
Phone key, light penetration key, electronic parts and components, integrated circuit (IC), electrician electric appliance, communication products, sanitary wares, tool accessories, glasses and watches, jewelry, auto parts, buckles, kitchenware and stainless teel products industries.

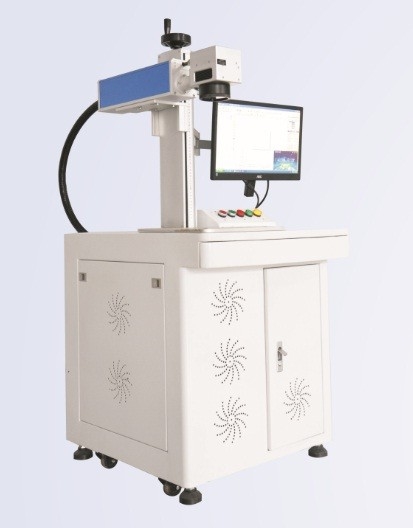

Description
Use the original import isolation for optical fiber laser windon protection, enhance the stability and laser lifespan.
Laser beam quality is much better than traditional solid laser marking machine, which is the base model (TEM00) output, and diameter of Foucus flare is less than 20 um. Divergence Angle is a quarter of the laser diode pump. Especially suitable for fine, precision marking.
No need any maintenance and long hours lifespan, small volume, suitable for poor working condition.
Applicable materials
Metal products, engineering plastics, electroplat coating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics and so on.
Main configuration
High performance control components
German Imported Scanlab Scanning Head
The Original Import IPG Optical Fiber Generator
Sample Display
